Storm Door Latch Assembly

Larson

Mortise Latch Assembly for Screen Away, 7/8" Backset

SPECIFICATIONS Type Mortise Latch for Retractable Screen Storm Door CH3041701 Body Depth Measurement: From Back of Faceplate 1-9/16" Backset 7/8" Body Thickness 9/16" thick  Body Height 5-3/4" tall Screw Holes 7"...

202580705x

Larson

Latch Assembly with Spindle for Larson Mortise Handle Solid Core Door

SPECIFICATIONS Type Larson® Latch Assembly Series Name Larson® Solid Core Door, Lifecore Series Backset: 1-3/16 inch (edge of latch to center of handle hole) Dimmensions of Latch Face Plate 5/8 x 2-5/8" Dimensions from Screw...

202560175x

Larson

Mortise Latch Assembly for Larson Storm Doors Euro Key Cylinder Lock, 7/8" Backset

SPECIFICATIONS Type Mortise Latch Assembly Series Name Storm Door Euro Key Cylinder Lock Body Depth Measurement: From Back of Faceplate 1-9/16" Body Thickness 9/16" thick  Body Hieght 5-3/4" tall Backset 7/8" Screw Holes 7"...

20239501x

Larson

QuickFit Series Latch Assembly and Strike Plate

SPECIFICATIONS Type Latch Assembly for QuickFit Handle Sets Series Name QuickFit Body Depth Measurement: From Back of Faceplate 1-9/16" Body Thickness 9/16" thick  Body Hieght 5-3/4" tall Door Type Storm Door with...

2029870301x

Larson

Mortise Latch Assembly for Larson Storm Doors, 7/8" Backset

SPECIFICATIONS Type Mortise Latch Assembly Seies Storm Door Rectangular Latch Assembly Body Depth Measurement: From Back of Faceplate 1-9/16" Backset 7/8" inch Body Thickness 9/16" thick  Body Hieght 5-3/4" tall Screw...

2024150740x

Larson

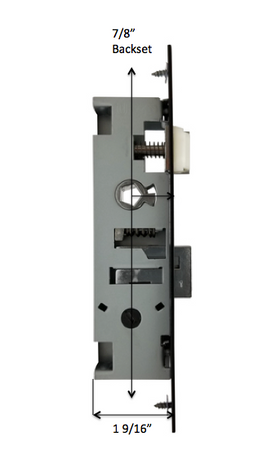

QuickFit Series Latch Assembly w/ Bit and Template for Larson Storm Doors

SPECIFICATIONS Type Latch Assembly for QuickFit Handle Sets Series Name QuickFit Body Depth Measurement: From Back of Faceplate 1-9/16" Body Thickness 9/16" thick  Body Hieght 5-3/4" tall Door Type Storm Door with...

2029900801x

Larson

Right Hinging Satin Nickel Multi Point Lock Storm Door

SPECIFICATIONS Series Name Right Hinging Multi-Point Lock Door Type Larson Multi-Point Storm Doors Packaged Contents Right Hinging Lock Right Hinging Lock - Looking at the Door from the Outside. Compatible Door Models: Model: 349-20 Only...

08730800R

Larson

Left Hinging Satin Nickel Multi Point Lock Storm Door

SPECIFICATIONS  Series Name Left Hinging Multi-Point Lock  Door Type Larson Multi-Point Storm Doors Packaged Contents Left Hinging Lock Left Hinging Lock - Looking at the Door from the Outside Compatible Door Models: Only works with...

08730800

Larson

Spindle ONLY for Larson Solid Core Door - No Keylock

Spindle ONLY for Larson Solid Core Door - No Keylock This Spindle only works with Product Page 202560175x Compatible Door Models: Life-Core 274-FL 271-TT 278-SS 370-79 370-78 370-83 370-80 Mortise handle kit Instructions: Instructions Link Drill...

202560SPx
