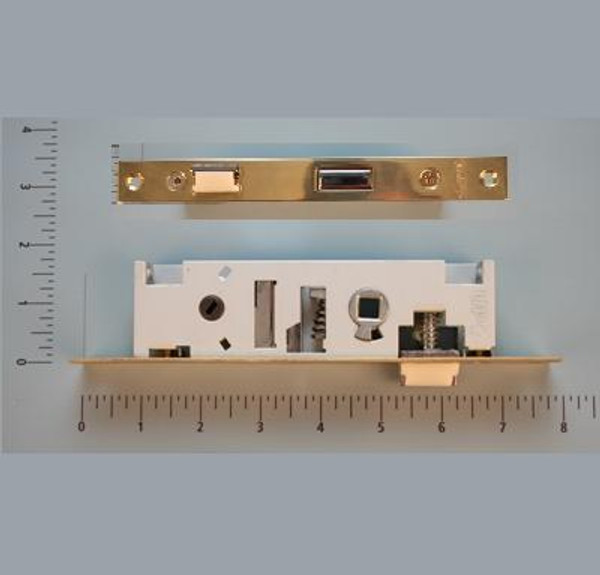

Mortise Latch Assembly for Screen Away, 7/8" Backset

Brand:

Larson

SKU:
202580705x
$44.00
Mortise Latch Assembly for Screen Away, 7/8" Backset
Mortise Latch Assembly for Screen Away, 7/8" Backset

Mortise Latch Assembly for Screen Away, 7/8" Backset

Brand:

SKU:
202580705x
$44.00

Choose Options

Brass

Select Color

Mortise Latch Assembly for Screen Away, 7/8" Backset

Mortise Latch Assembly for Screen Away, 7/8" Backset

$44.00
Shipping:
$5.00 (Fixed Shipping Cost)

Related Products

Larson

Retractable Screen Trim Plate

Outside Trim Plate with Built in Key Lock Included in part # : CH3041701 Color: Aged Bronze Looking for other parts of this kit? See them at the links below: Inside Handle -

2024675703x

$19.00 - $29.00

SPECIFICATIONS

Type Mortise Latch for Retractable Screen Storm Door CH3041701

Body Depth Measurement: From Back of Faceplate

1-9/16"
Backset 7/8"
Body Thickness 9/16" thick
Body Height 5-3/4" tall
Screw Holes 7" Inches
Overall Length 7-3/4''
Door Type Storm Door

Compatible Door Models:

  • Model: 346 Series (Screen Away)
  • Model: 646 Series
  • Model: 355-52

Other product Details: Lock Body Measurements

  • Depth Measurements from back of faceplate: 1-9/16"
  • Thickness: 9/16" thick
  • Height: 5-3/4" tall
  • This mortise lock is NON handed, to change the latch to the opposite handing please remove the screws from the faceplate and you can manually turn the latch to the desired position and re-install the faceplate.
Helpful Tip!
  • This part does not include new fasteners. Do not throw away your original screws, you will need them for the installation of your new part.

Mortise Handle Kit : CH3041701

Don’t need the whole kit? You can buy individual parts separately.

Inside Handle - 2024242002
Outside Handle - 2024242001
Latch Assembly - 202582005
Outside Trim Plate - 2024675703
Screen Plate - 2024675703
Screw and Spindle - 2024671702
Collar for Handles - 2026532004

Compatible Door Models:

Model: 346 Series (Screen Away)
Model: 646 Series
Model: 355-52
346-80
346-83
646-60
346-13
646-80

Body Depth Measurement: From Back of Faceplate 1-9/16"
Backset: 7/8"
Body Thickness: 9/16" thick
Body Height: 5-3/4" tall
Screw Holes: 7" Inches
Overall Length: 7-3/4''
